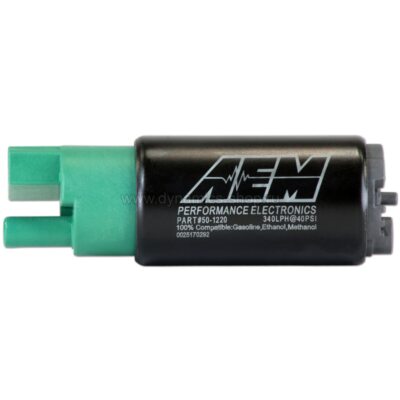

AEM 50-1220 High-performance fuel pump 340 l/h I Compatible with E85 (65mm, Offset Inlet)

AEM 50-1220 High-performance fuel pump 340 l/h I Compatible with E85 (65mm, Offset Inlet)

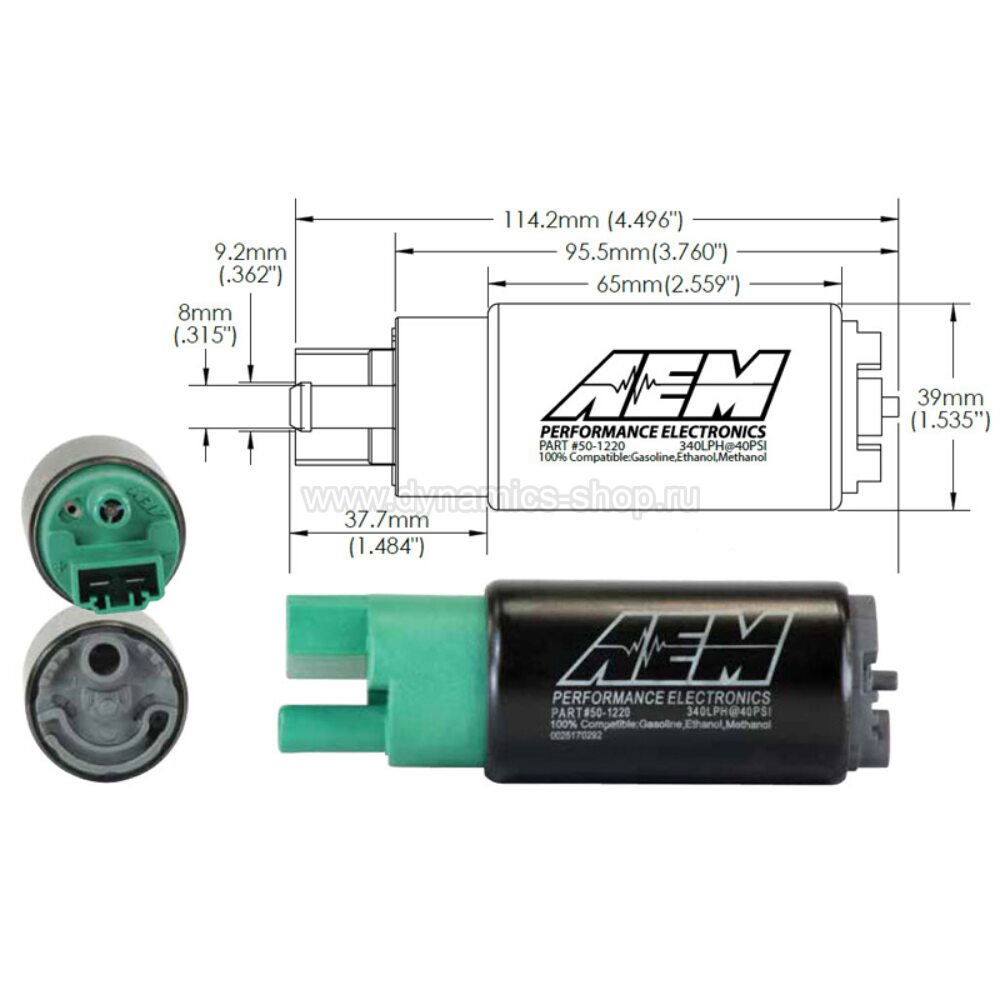

TECHNICAL SPECS:
Weight: 10.4oz (294grams)
Outside Diameter: 39mm OD
Length: 65mm
External Materials: Black plated steel with laser etching, green/gray end caps
Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
Outlet Fitting: 8 mm hose clamp. Offset
PRV Activation: 80 PSI
Impeller Design: Single Scroll Ceramic Turbine

VOLTAGE SPECS:
Connector Terminal: 6 mm Spade (pos/neg)
Min Voltage Input: 6 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 12 amps (13.5v)
Current Draw (80 psi): 15 amps (13.5v)
Fuse: 20 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
