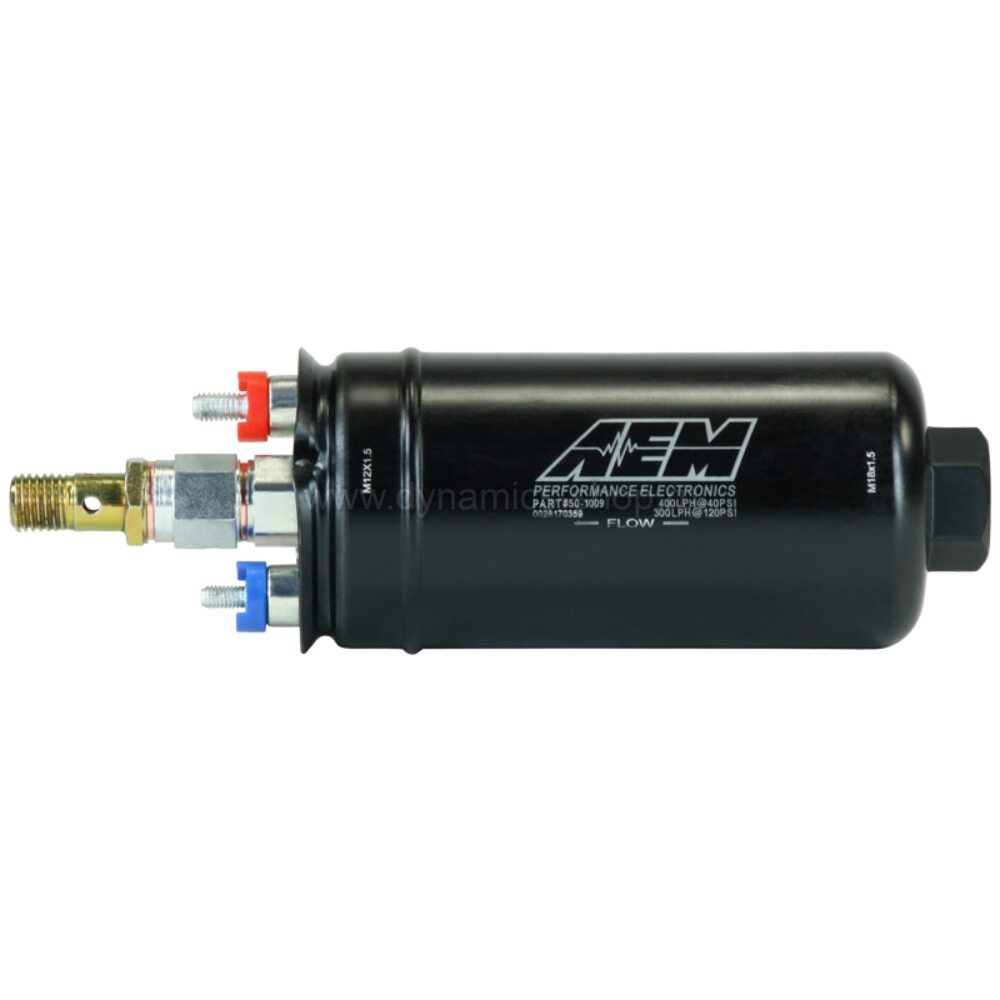

AEM 50-1009 Fuel pump AEM 400 l / h (METRIC)

AEM 50-1009 Fuel pump AEM 400 l / h (METRIC)

TECHNICAL SPECS:
Weight: 35.8oz (1015 grams)
Outside Diameter: 60mm OD
External Materials: Black plated steel with laser etching
Inlet Fitting: M18X1.5 female
Outlet Fitting: M12x1.5 male
PRV Activation: 150 PSI
Impeller Design: Roller vane with ceramic end plate

VOLTAGE SPECS:

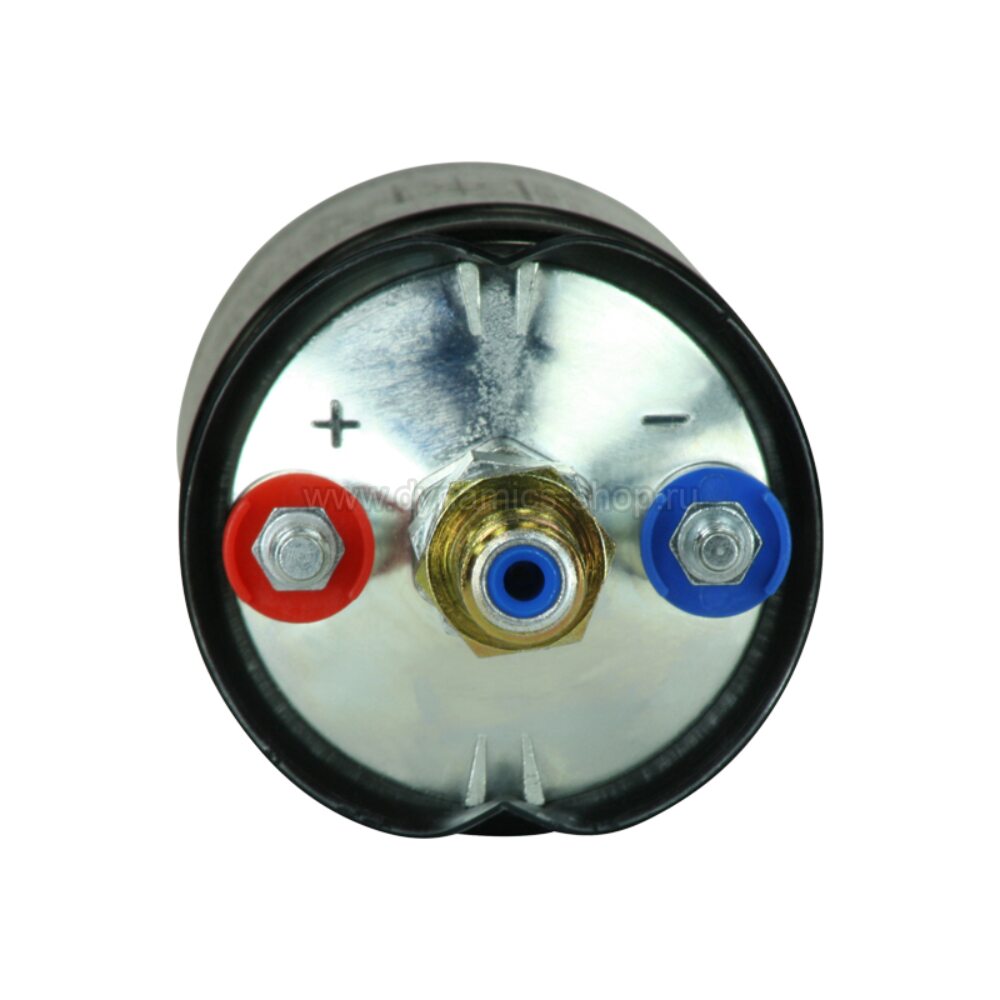

Connector Terminal: 6mm stud positive, 5mm stud negative
Min Voltage Input: 10 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v)
Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v)
Fuse: 25 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
